JMC 4 TON SINGLE CABIN TIPPER TRUCK
Specifications |
|
| Model | CONVEY 4T TIPPER S/C |
| Cabin | Single |
| Gross Vehicle Weight (kg) | 6705 |
| Payload (kg) | 4000 |
| Seat Capacity | 3 |
| Wheelbase (mm) | 3360 |
| Tread Front (mm) | 1680 |
| Tread Rear (mm) | 1570 |
| Min.Ground Clearance (mm) | 220 |
| Min.Turning Diameter (m) | 13.6 |

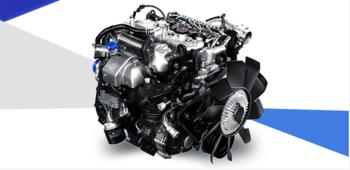

| Engine | JX1062TG24 |
| Displacement (cc) | 2771 |
| Max.Torque (N·m/rpm) | 260/1800-2000 |
| Max.Output (kw/hp/rpm) | 80(109)/3400 |
| Outside Size (L*W*H)(mm) | 5940x2080x2310 |
| Rear Body Size(L*W*H)(mm) | 3880x2000x500 |
| Tyre size | 7.5R16 |
| Configuration | |
| Tilt Cabin | ● |
| Air Conditioner | ● |
| Remote Central Lock | ○ |
| Interior | Black |
| Power Steering | ● |
| ABS | ● |
